BY300 Serial
|
|
| BY300S | BY300C |

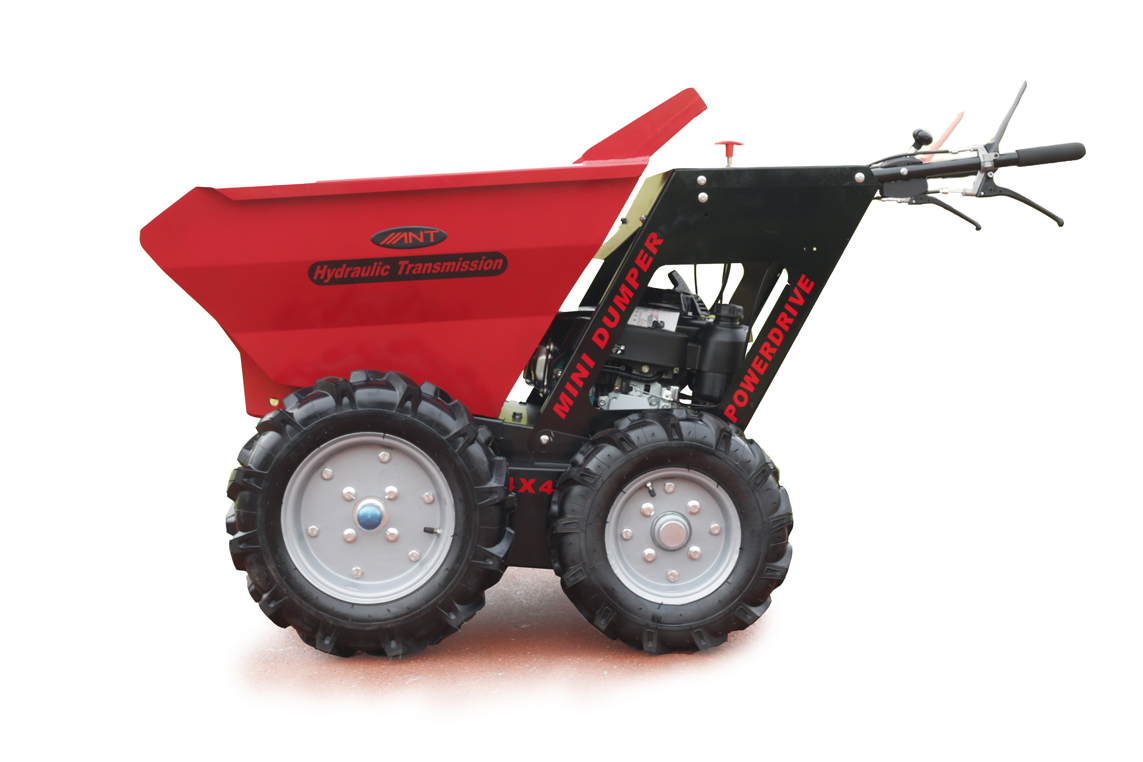

ANT mini dumper BY300 is a hydraulic design and 4-wheel driven. The main parts are imported from USA with global warranty. The max loading weight is 300kgs and the width is 78cm narrow. It's powerful to carry bricks, sand, stones, wood, crops, fruits around various sites. There are rich accessories to add the value, such as flat bed, extension sides, snow plough, ball hitch, power lift and so on.
In action! Photos and Videos

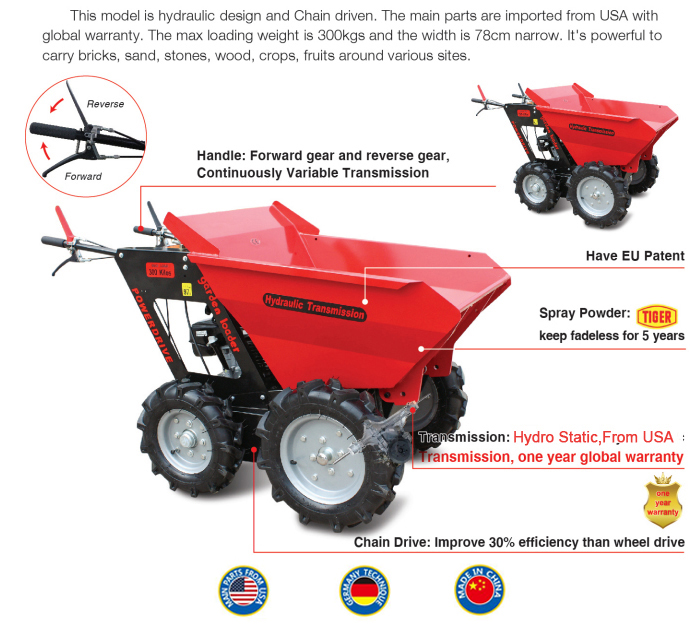

Details
Attachments/Accesorios
|
 |

|
| GRASS TIRE | SOLID TIRES | DOUBLE TIRES |
| FREE MAINTENANCE |
|
|
|
| FLAT BED | POWER LIFT | SNOW PLOUGH |
|
|
|
| EXTENSION SIDES | BALL HITCH |

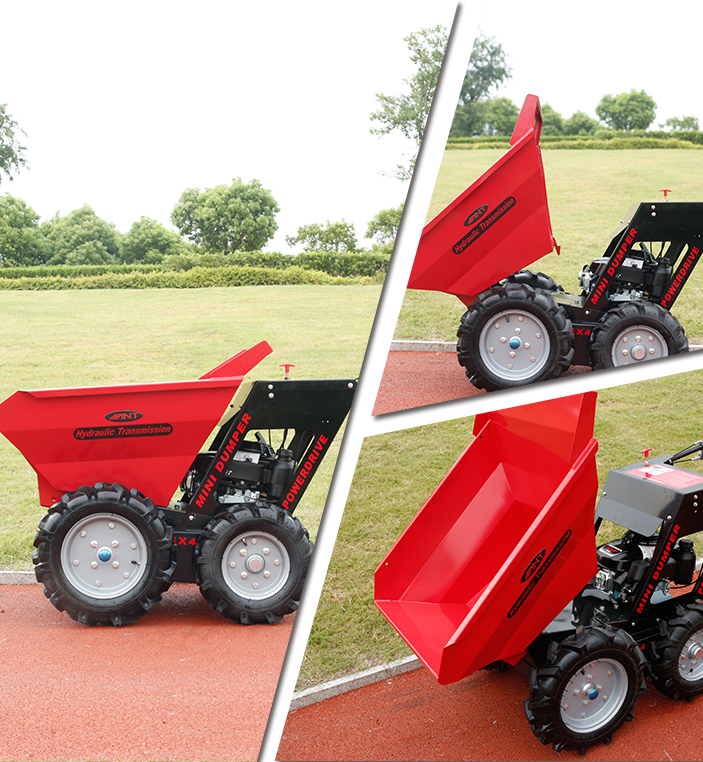

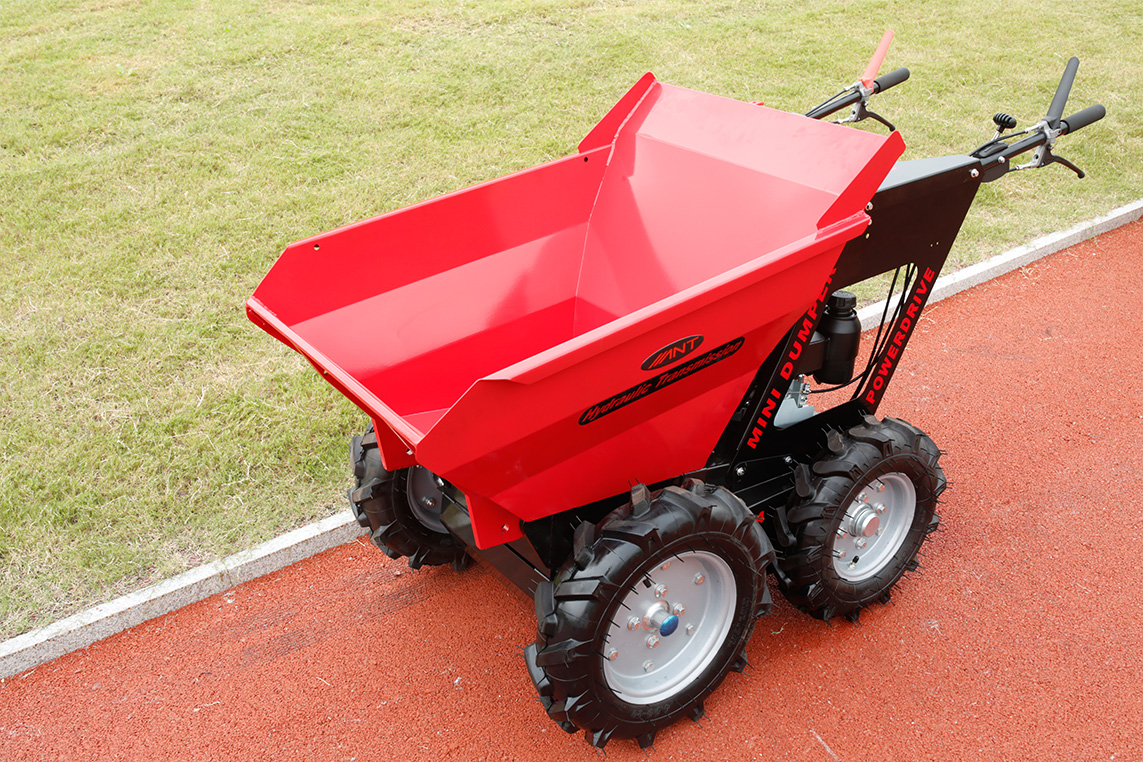

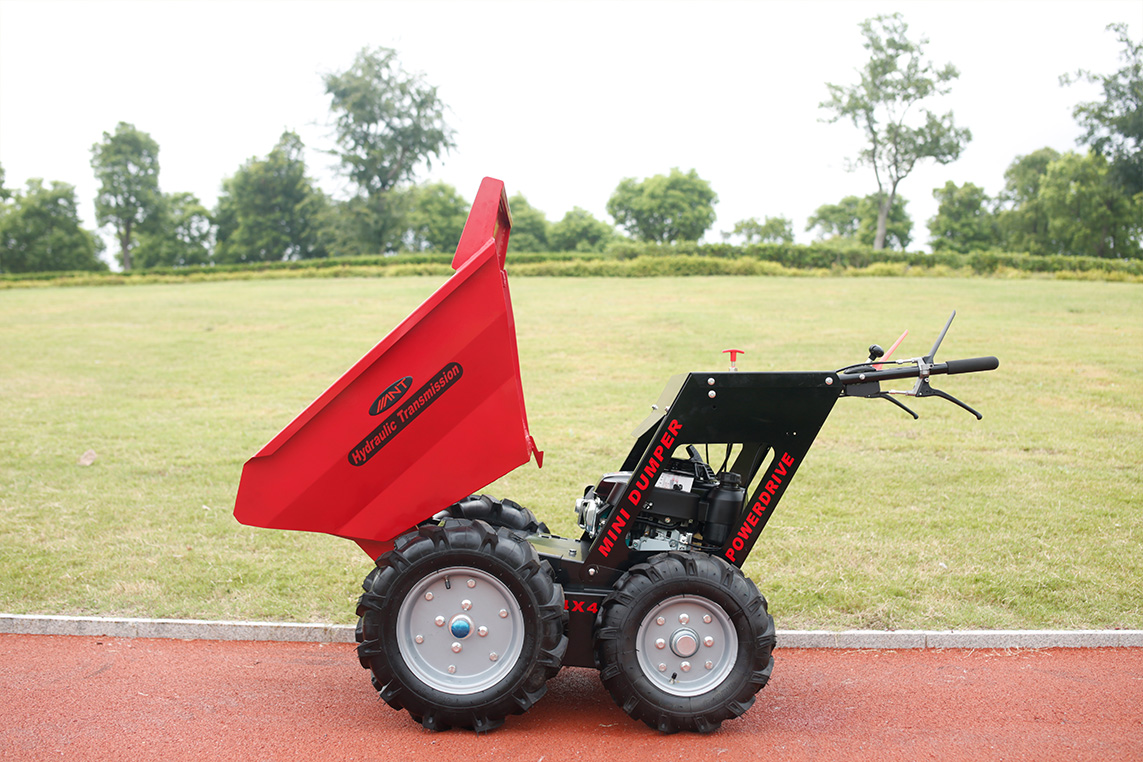

Operation Pictures
Technical Data Sheet
| Description | BY300S | BY300X | BY300C |
Weight kg(lb)
|
131(289) | 131(289) | 175(386) |
Dimension mm(in)
|
1280*720*1070 | 1280*720*1070 | 1740*720*1100 |
Engine
|
Honda GXV160 5.5HP | Honda GXV160 5.5HP | Honda GX160 5.5HP |
Transmission
|
Hydraulic pump Stepless speed changes |
Hydraulic pump Stepless speed changes |
Mechanical Transaxle |
|
Loading weight kg(lb) |
300(660) | 300(660) | 300(660) |
Drum material
|
Hot dip galvanizing or Plastic-spray |
Hot dip galvanizing or Plastic-spray |
Plastic-spray |
Unloading
|
Manual or self loading | Manual or self loading | Manual |
We reserve the right to improve or withdraw the specification or products without prior notice.
