BY400
BY400 Serial
![]() | ![]() |
BY400M | BY400 |

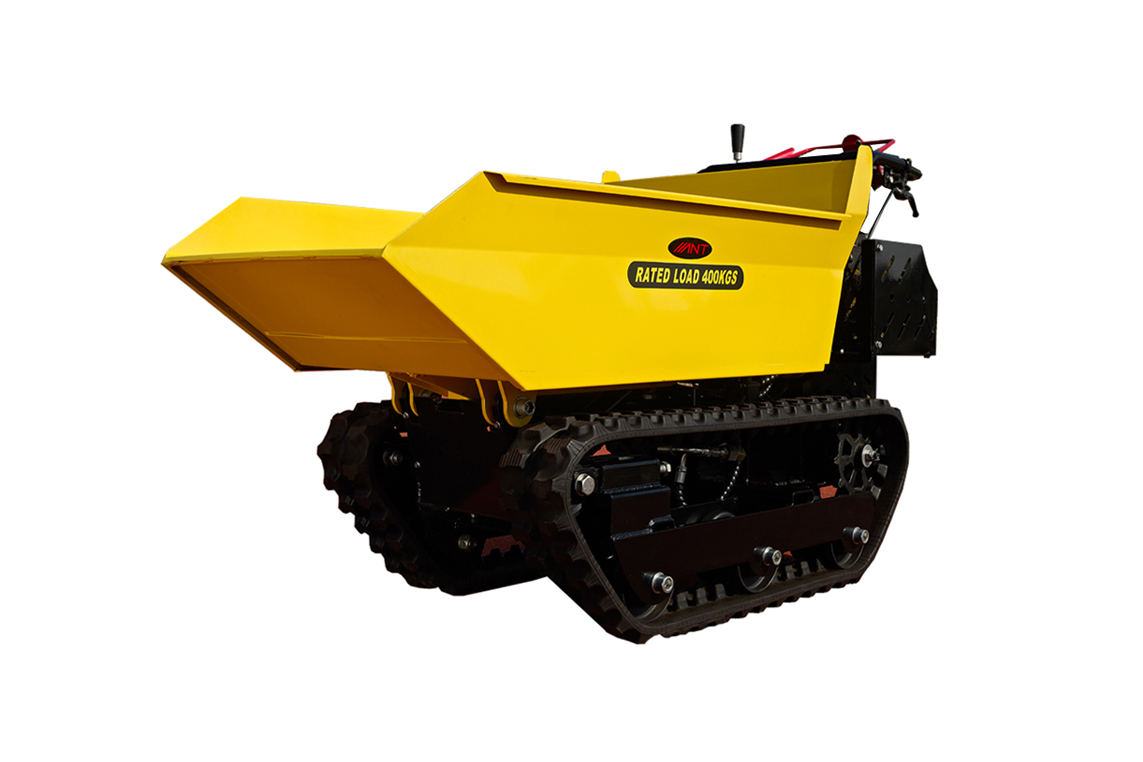

The dumper BY400 with a capacity of 400 kg. The crawler dumper is self-propelled and the skip can be tipped. A hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this. Our dumper sets itself apart from the competition with this function! The lifting and lowering process is complete within a matter of seconds

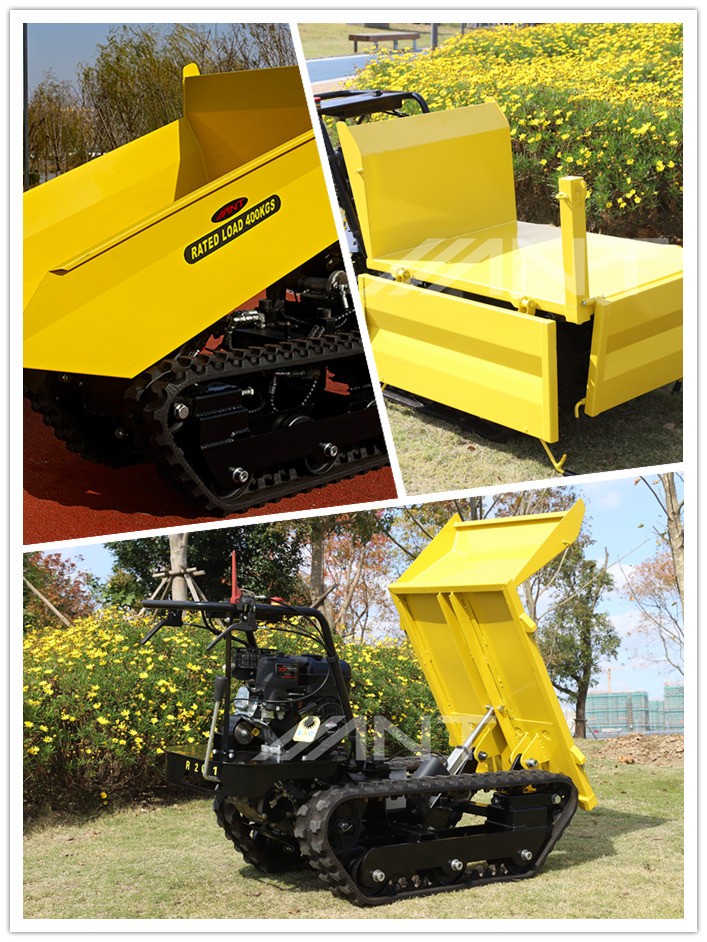

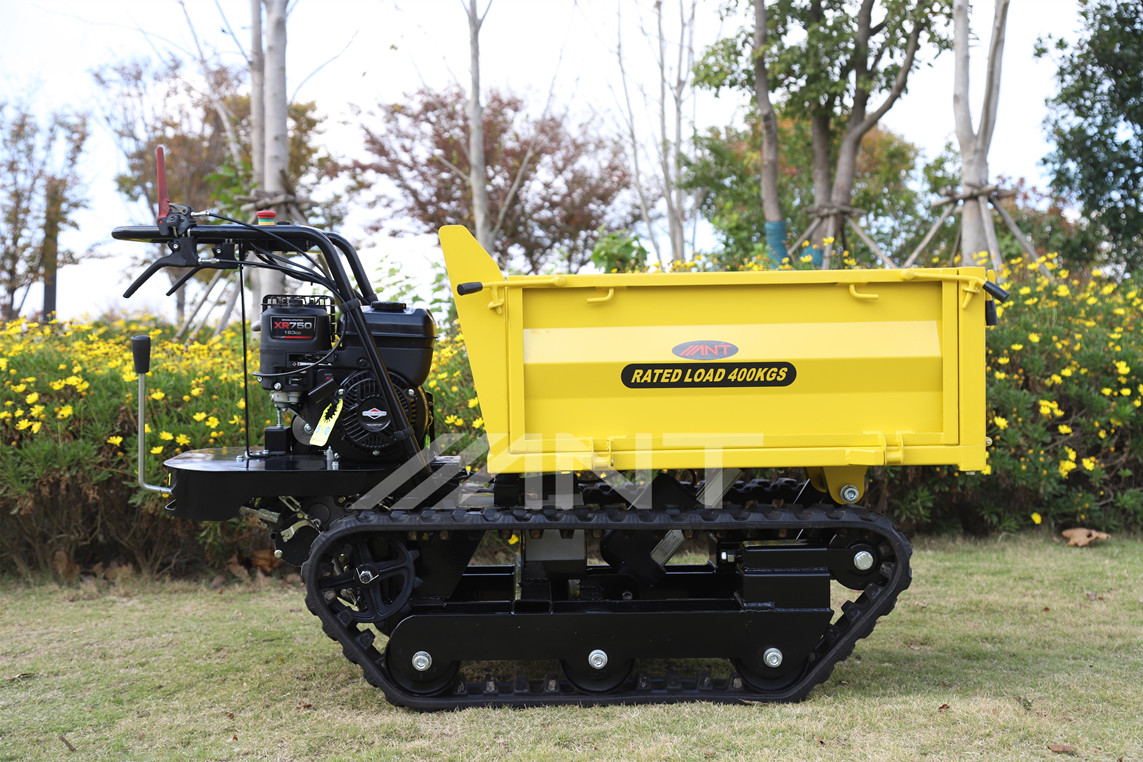

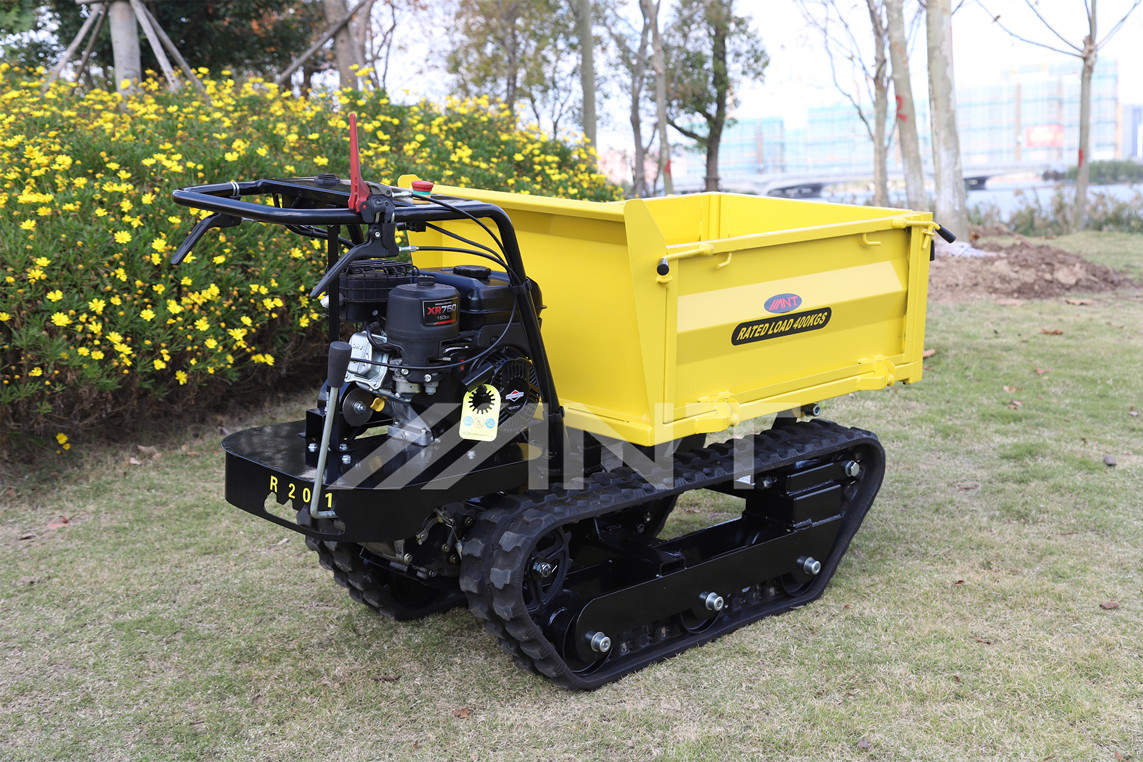

In action! Photos and Videos
Details
![]() | ![]() | ![]() |
RAISE THE CHASSIS | AUTOMATIC DISCHARGE | AUTO TURNING |

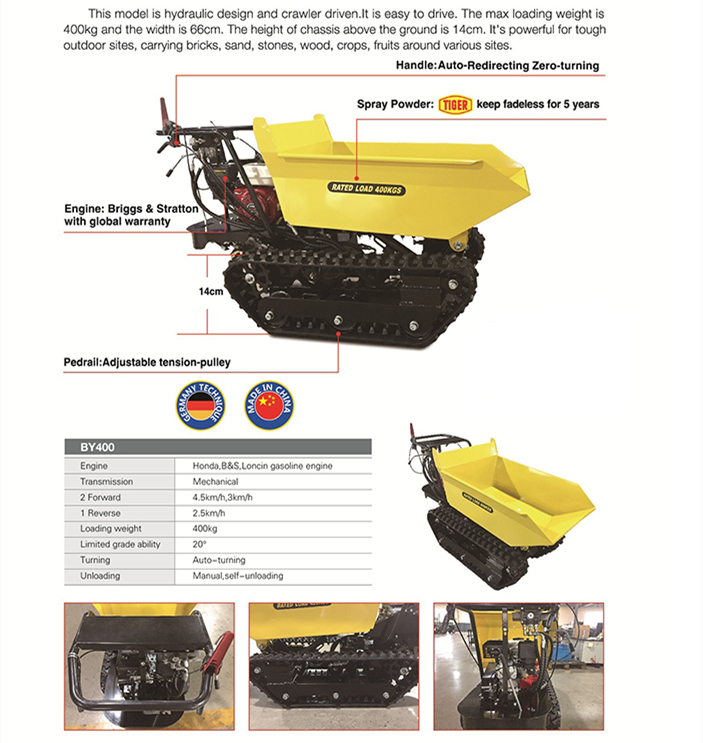

Technical Data Sheet
Description | BY400M | BY400 |
Weight kg(lb)![]() | 282(128) | 282(128) |
Dimension mm(in)![]() | 1740*720*1200 | 1740*720*1200 |
Engine![]() | Honda GX200 6.5HP | Honda GX160 5.5HP |
Transmission![]() | Peerless Transaxle 6 Forward/2 Reverse Speed | 2 forward/1 reverse speed |
Loading weight kg(lb) | 400(881) | 400(881) |
Drum material![]() | Plastic-spray | Plastic-spray |
We reserve the right to improve or withdraw the specification or products without prior notice.
