BY800
BY800 Serial
 |  |  |  |  |  |
| BY800 | BY800L | BY800S | BY800W | BY800M | BY800MIX |
This Dumper features a huge 800kg bucket, with rubber crawler are used in special circumstances and provide a more even distribution of weight .hydraulic self loading with skid steer style swivel bucket strong enough for the toughest jobs.
In action! Photos and Videos
Details
 |  |  |  |
| BUCKET SKIP | BUCKKET | BRAKE FRAMK | ELECTRIC START SWITCH |
 |  |  |  |
| HEAVY DUTY | SIGHT FUEL LEVEL | STANDING PLATFORM | TIMER RUBBER TRACK |
 |  |  |  |
| PISTIONS PUMPS | QUICK COUPLING | FILTER | ROCKING ROLLERS |
Attachments/Accesorios
 |  |  |
| FORKLIFT | GRADER | MOUNTING PLATE |
 |  |  |
| GRAPPLE | QUARTERING HAMMER | POST HOLE DIGGER |
 |  |  |
SNOW TILLER | BRUSH CUTTER | SWEEPER |

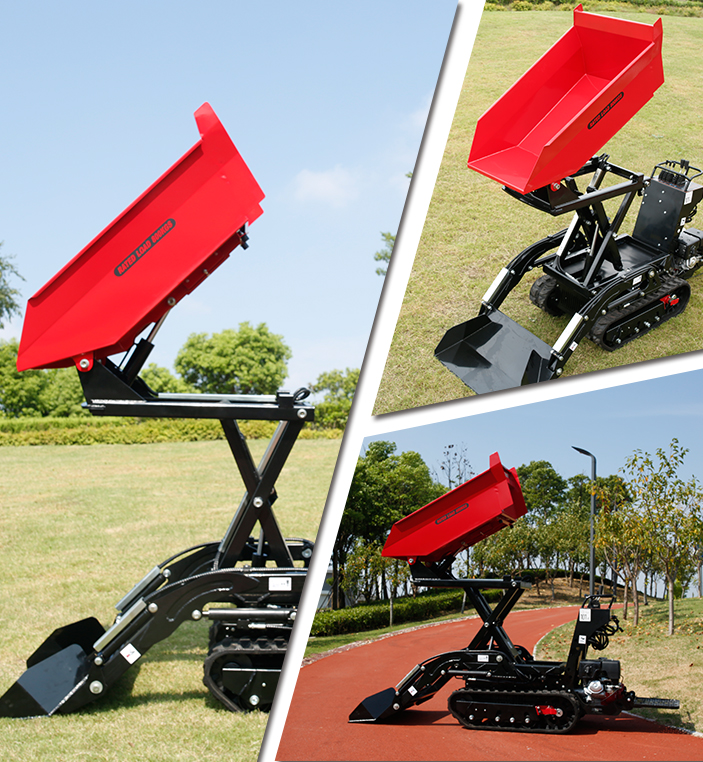

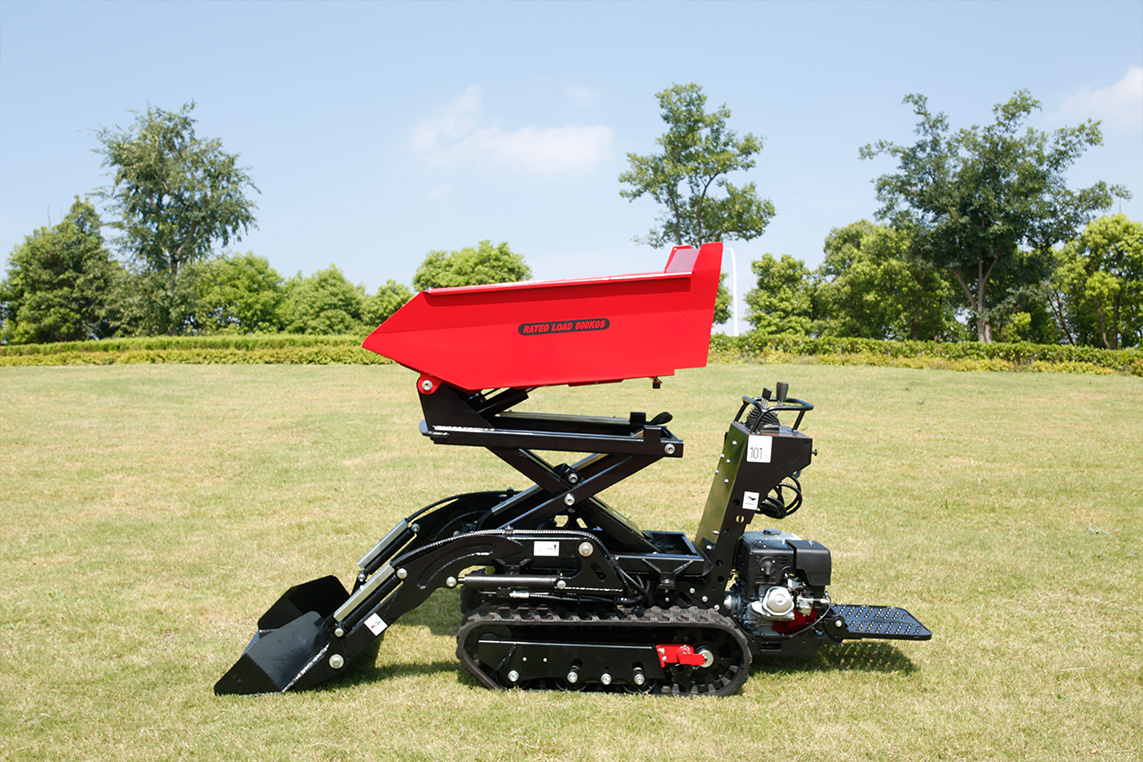

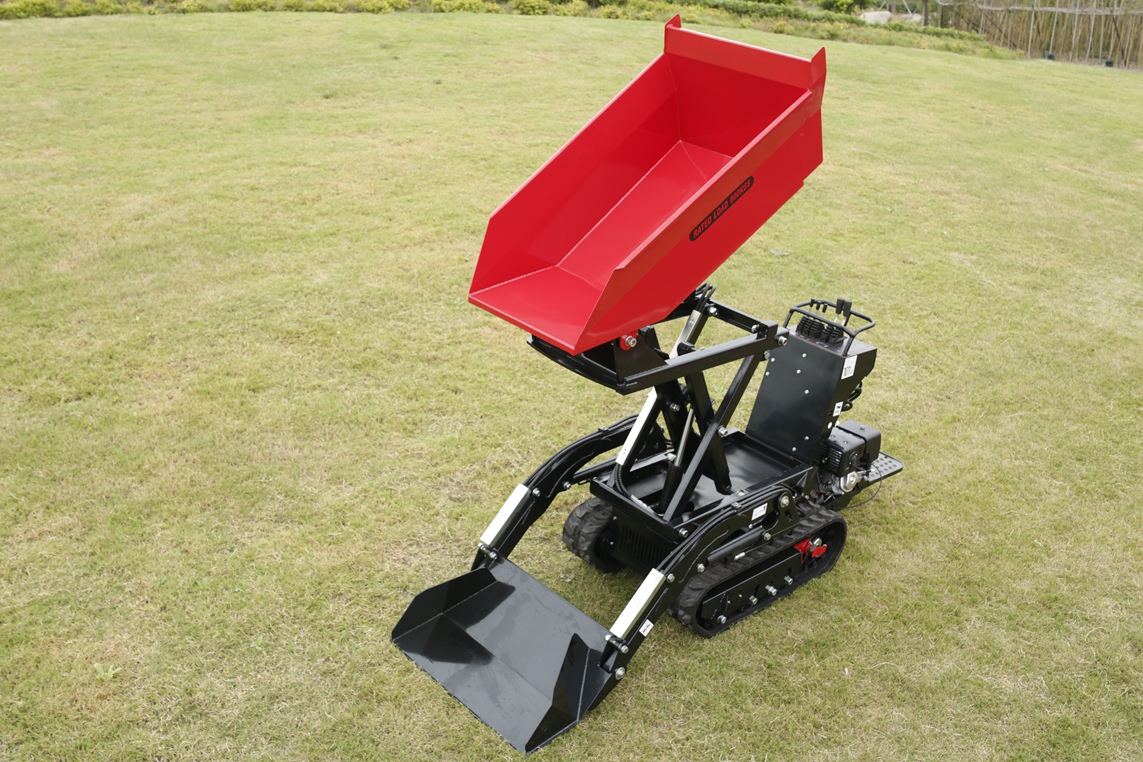

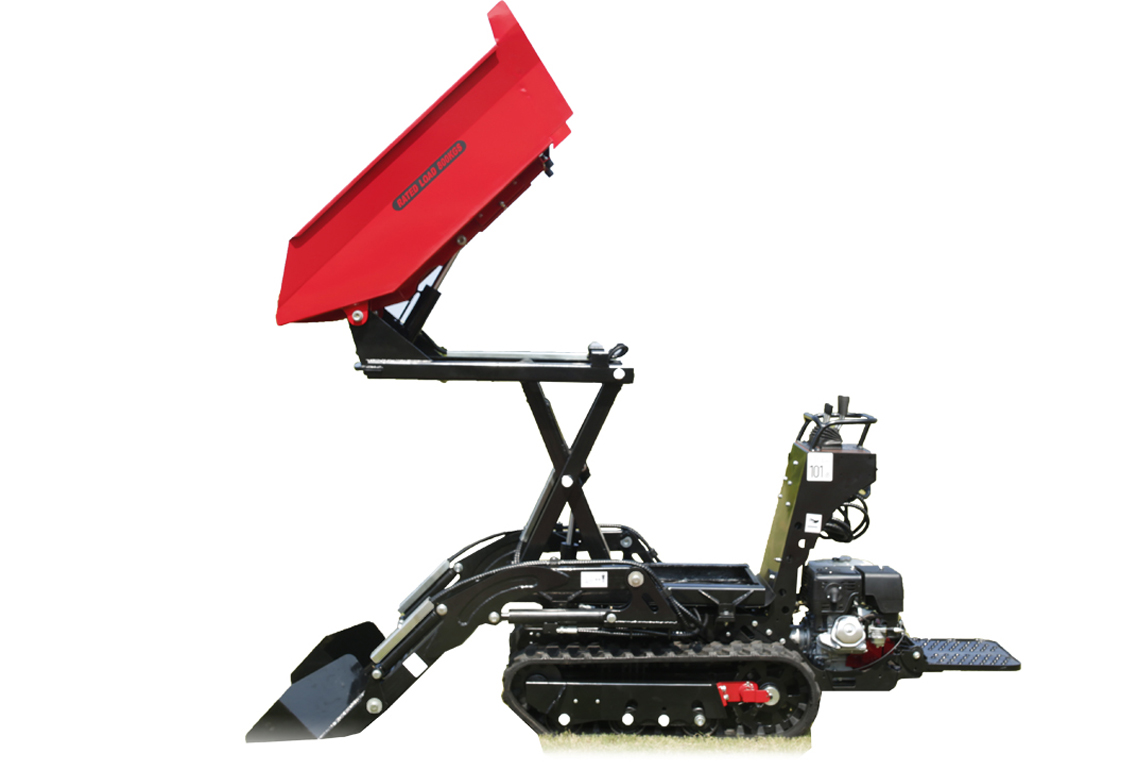

Operation Pictures
Technical Data Sheet
| Description | BY800 | BY800S | BY800W | BY800L |
Weight kg(lb)  | 650(1430) | 625(1375) | 600(1320) | 630(1389) |
Dimension mm(in)  | 2280*920*1200 | 2200*900*1250 | 2280*900*1250 | 2200*900*1250 |
Engine  | Honda GX390 13HP | Honda GX390 13HP | Honda GX390 13HP | Honda GX390 13HP |
Transmission  | Piston pump | Piston pump | Piston pump | Piston pump |
Loading weight kg(lb) | 800(1762) | 800(1762) | 800(1762) | 800(1762) |
Drum material  | Plastic-spray | Plastic-spray | Plastic-spray | Plastic-spray |
We reserve the right to improve or withdraw the specification or products without prior notice.
